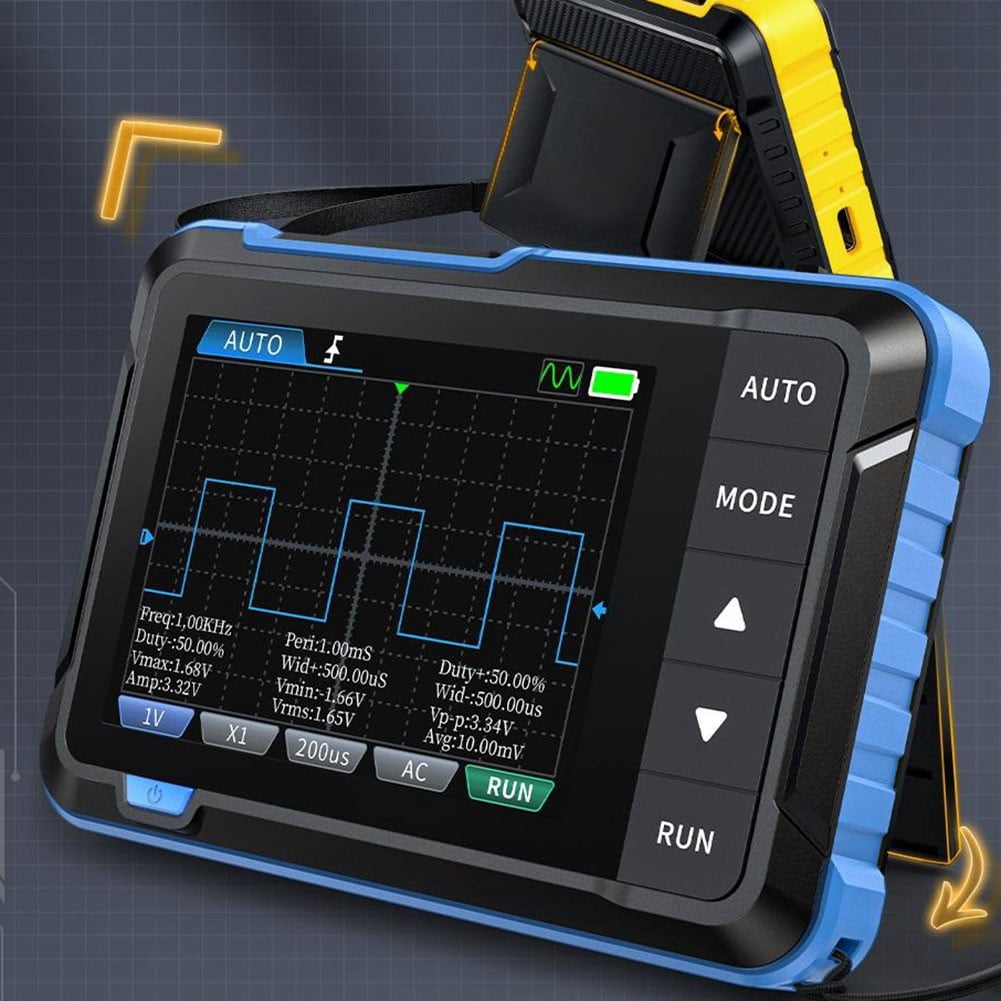

Handheld DSO153 Oscilloscope 5MS/s Sampling Rate for Digital and Analog Signals

<p><strong>Features:</strong><br>*High-Performance Oscilloscope – Features a real-time sampling rate of 5MS/s and a 1MHz bandwidth, guarantee accurate signal measurements for both periodic analog and non-periodic digital signals up to ±400V.<br>*Smart Auto-Setup &amp; Trigger Functions – Equipped with a convenient AUTO button for instant waveform display without manual adjustments, along with versatile trigger modes (single, normal, automatic) for precise signal capture.<br>*Built-In Function Generator – Includes a multifunctional signal generator (up to 10KHz), making it best for testing and troubleshooting various electronic circuits.<br>*Clear HD Display &amp; Long Battery Life – Boasts a 2.8-inch LCD screen with 320×240 resolution for Clear waveform visualization, powered by a 1000mAh rechargeable battery offering up to 4 hours of continuous use.<br>*Energy-Efficient Design – Automatically shuts down after inactivity to conserve power, enhancing battery life and device longevity for prolonged usability.<br><br><strong>Specification:</strong><br>Part Name: Digital Oscilloscope<br>Material: plastic<br>Color: As shown<br>Model: DSO153<br>Sampling rate: 5MS/s<br>Bandwidth:1M<br>Vertical sensitivity:10mV/Div-10V/Div<br>Time base range: 500ns-20S<br>Voltage range: X1: ±40V (Vpp: 80V); X10: ±400V (Vpp: 800V)<br>Trigger mode: automatic/regular/single<br>Trigger edge: rising edge/falling edge<br>Coupling : AC/DC<br>Calibrated square wave: frequency: 1K; duty cycle: 50%; amplitude: 3.3V<br>Frequency:0-10KHz<br>Duty cycle: 0-100% (rectangular wave and sawtooth wave)<br>Amplitude:0.1-3.3V<br>Waveforms: sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive staircase wave, inverse step wave, staircase wave, noise wave, exponential rising, exponential falling, DC signal, multi-tone, Sink pulse, Lorenz wave<br>Display: 2.8 inches/PPI: 320*240<br>USB charging:5V/1A<br>Lithium battery capacity: 1000mAh<br>Size:99x68.3x19.5mm<br>Weight:100g<br><br><strong>Package Contents:</strong><br>#A:<br>1*Digital Oscilloscope<br>1*lanyard<br>1*Crocodile clip probe<br>1*Type-C data cable<br>1*Instruction manual<br><br>#B:<br>1*Digital Oscilloscope<br>1*lanyard<br>1*Crocodile clip probe<br>1*P6100 probe ( probe)<br>1*Adapter<br>1*Type-C data cable<br>1*Instruction manual<br><br><br>Note:<br>1.The product is subject to the actual product<br>2. Please allow slight manual measurement deviation for the data</p>

• **High-Performance Oscilloscope – Features a real-time sampling rate of 5MS/s and a 1MHz bandwidth, guarantee accurate signal measurements for both periodic analog and non-periodic digital signals up to ±400V.*
• **Smart Auto-Setup & Trigger Functions – Equipped with a convenient AUTO button for instant waveform display without manual adjustments, along with versatile trigger modes (single, normal, automatic) for precise signal capture.*
• *Clear HD Display & Long Battery Life – Boasts a 2.8-inch LCD screen with 320×240 resolution for Clear waveform visualization, powered by a 1000mAh rechargeable battery offering up to 4 hours of continuous use.*
• *Energy-Efficient Design – Automatically shuts down after inactivity to conserve power, enhancing battery life and device longevity for prolonged usability.**Specification:*Part Name: Digital Oscilloscope*

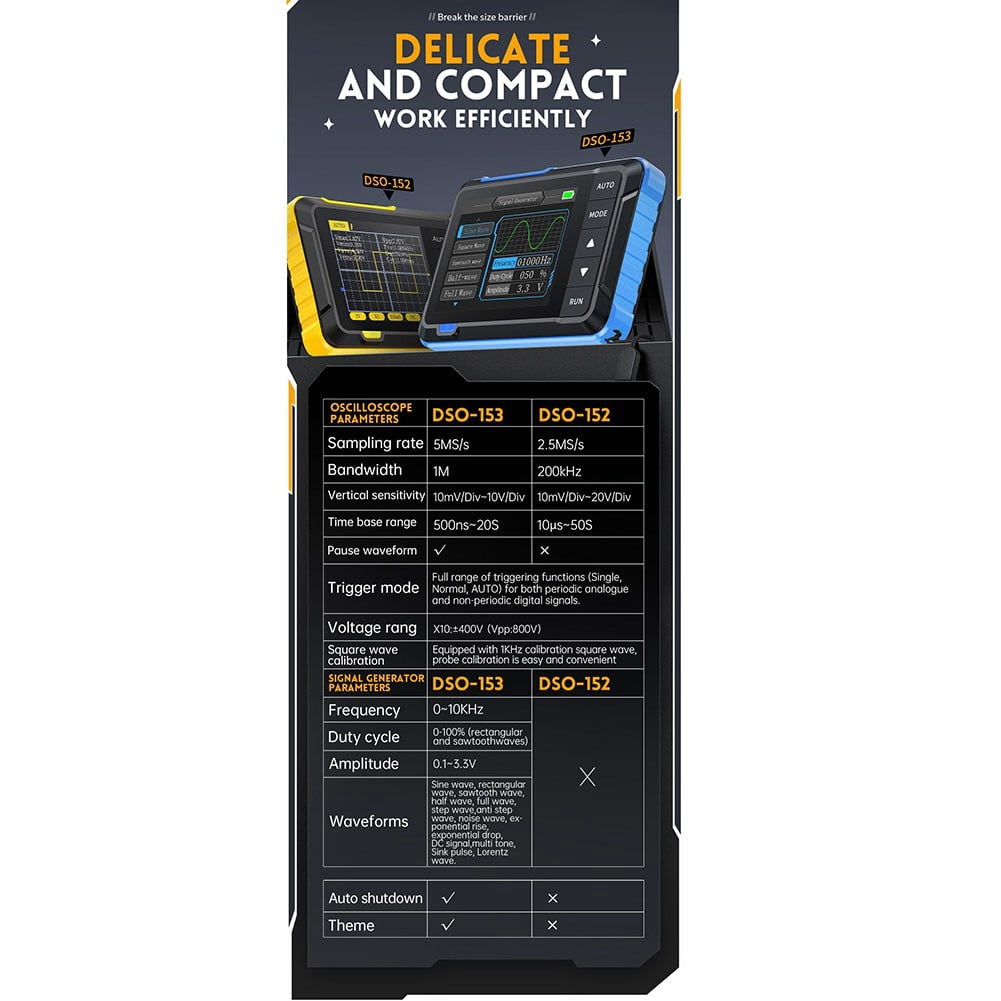

• *Trigger mode: automatic/regular/single*Trigger edge: rising edge/falling edge*Coupling : AC/DC*Calibrated square wave: frequency: 1K; duty cycle: 50%; amplitude: 3.3V*Frequency:0-10KHz*Duty cycle: 0-100% (rectangular wave and sawtooth wave)*Amplitude:0.1-3.3V*Waveforms: sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive staircase wave, inverse step wave, staircase wave, noise wave, exponential rising, exponential falling, DC signal, multi-tone, Sink pulse, Lorenz wave
